Brushless Fuel Pump

 Rationale

Swiwin general purpose oil pump belongs to a gear pump. Gear pump is a rotary pump that depends on the working volume change and movement formed between the pump cylinder and the meshing gear to transport liquid or pressurize it. Composed of three gears, pump body and pump cover composed of a closed space, when the gear rotates, the volume of the space on the side of the gear off from small to large, forming a vacuum, the liquid inhalation, the volume of the space on the gear meshing side from large to small, and the liquid squeezed into the pipeline. The suction cavity and the discharge cavity are separated by the meshing line of the gear. The pressure at the outlet of the gear pump depends entirely on the resistance at the pump outlet.

Dominant

The oil pump adopts brushless motor and three-gear structure design, which can effectively prevent the engine stalling caused by the oil line entering the bubble.

Should

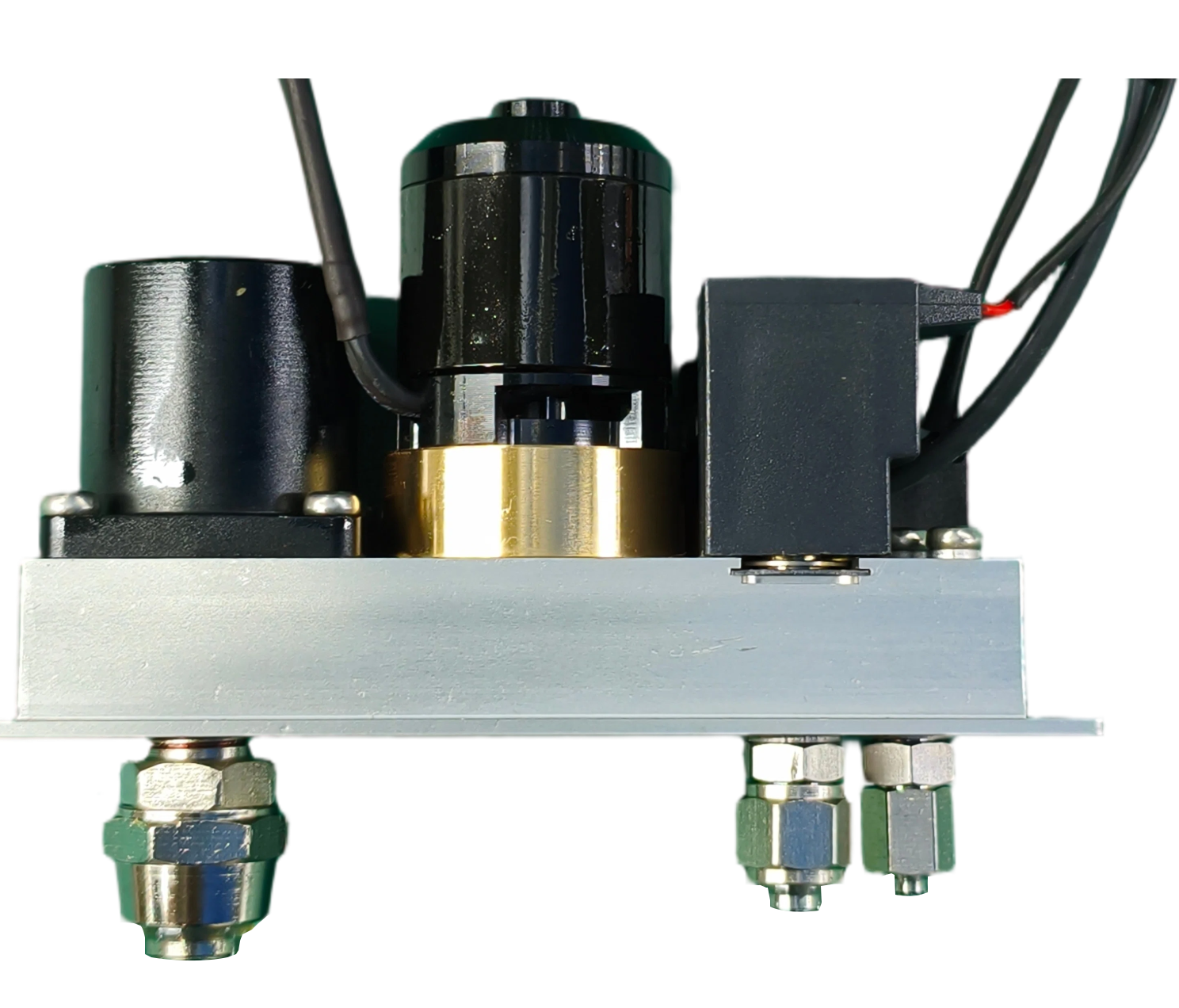

SWP100 type oil pump is mainly used in SW600Pro, SW800Pro and other large thrust engines. The main oil pump, ignition oil pump, Filter, main oil circuit and ignition oil circuit solenoid valve of the engine adopt integrated design to form an integral oil supply control unit to provide stable fuel supply for engine operation.
